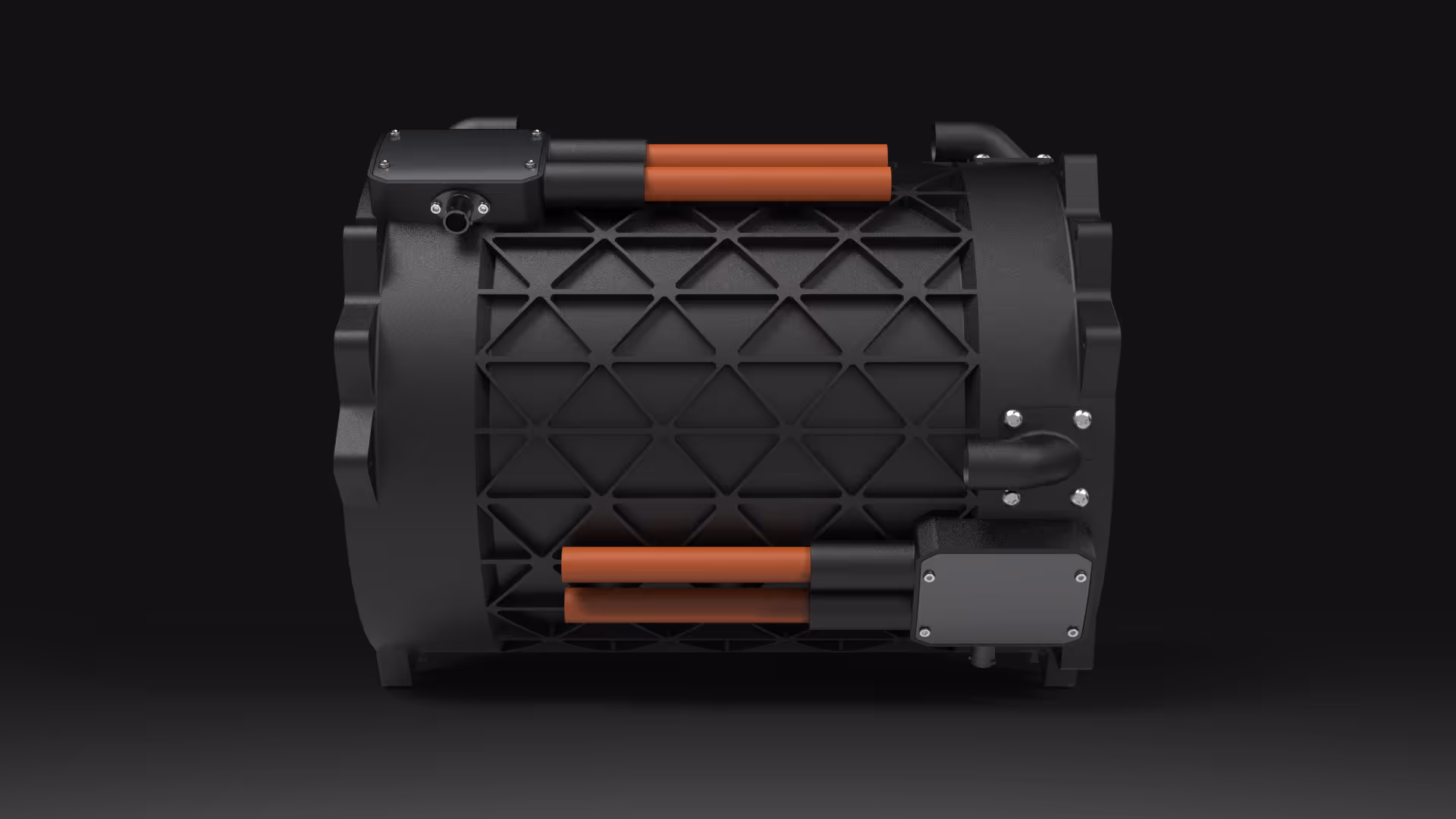

The HPDM-500 is a fault-tolerant, multisector integrated motor drive with a power output of 500 kW in a 45 kg package. This product leverages H3X's scalable core technology to deliver best-in-class power density and efficiency. With two independent windings and inverters, the HPDM-500 has no single point of electrical failure resulting in exceptional fault tolerance. This unit is capable of fully bidirectional four-quadrant operation (motor and generator in both directions).
Delivers >40% improvement over conventional windings in terms of maximum continuous current density due to high fill factor (>70%), high thermal conductivity (> 5 W/m-K bulk), and high temperature capability (265 °C for 20,000 hours)
State-of-the-art discrete SiC devices enable an ultra-high-density inverter, featuring high switching speeds, advanced common-mode filtering, and an in-house developed self-sensing rotor position algorithm for exceptional performance and efficiency.
Simultaneous cooling of the power electronics and stator with a single additively manufactured cooling jacket, enabling seamless integration of the motor and inverter.
Featuring dual windings and inverters, the HPDM-500 ensures fault tolerance and continuous operation in the event of an electrical or cooling system failure.
